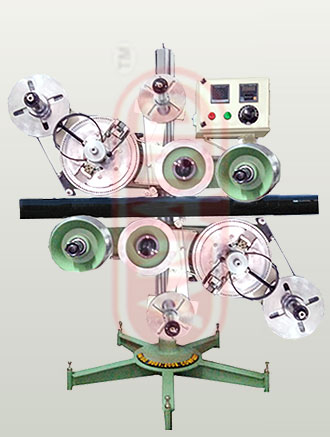

AF-770 Dual Side HDPE Pipes Hot Embossing Marking Machine

AF-770 Dual Side HDPE Pipes Marking Machine, Hot Embossing Sequential Color Marking Machine is specifically designed print mark both sides on all types of hdpe pipes with large diameters.

AF-770 Dual Side HDPE Pipes Hot Embossing Marking Machine supports from lowest 10mm to maximum of 350mm outside diameter.

We are pioneer in manufacturing dual side marking machine in industry, ANAND dual side HDPE Pipes automatic marking machine uses latest engineering techniques for smooth operation. Hence, ANAND marking machine do not have any induction motor to drive job, it only require power for heating.

AF-770 Dual Side HDPE Pipes Hot Embossing Marking Machine supports 4 digits sequential marking with the help of mechanical counter situated on marking head. It has excellent marking accuracy from 2.5mm to 9.5mm at every one meter. Apart from sequential marking, marking for company's logo, name, cable size, technical specification, etc can also be marked/printed upto maximum length of 400mm on either side of sequential marking. These marking is carried out by the sterios (Stamp) placed on the marking head.

With the help of Electronic Percentage differential circuit provided inside the Heat Controller, marking head is heated upto the desired temperature. Maximum available height of character for marking is 2.5mm to 9.5mm and counters upto 4mm. It counts total meters of cable passes through it with the help of digital monitor, which gives current position. It uses double pay up systems which helps in easy Ribbon (Tape) changing.

Additional expandability for seven digits coder can also be fitted on marking head to mark code numbers.


  • Specifically designed to mark both side in colour for all types of HDPE Pipes, Rigid PVC Pipes, uPVC Pipes Sections during extrusion process.
  • Fully automatic without any induction motor. Optional motor driven models are available for offline printing.
  • Character (Stereo) Size from 2.5mm to 9.5mm.
  • Printing Speed Both Side Max. 25 Meters Per Minute - 40 Meters Per Minute without Polyester Tape.
  • Scope of marking 10mm to 350mm outside diameter.
  • Every one meter marking
  • Brass Stereos and Metal Stereos.
  • Digital counter and display provided.
  • Easy to operate and maintain.
  • Dimensions : 1500mm x 1020mm x 920mm (H x L x W).
  • Total weight approximately 250 Kgs.
