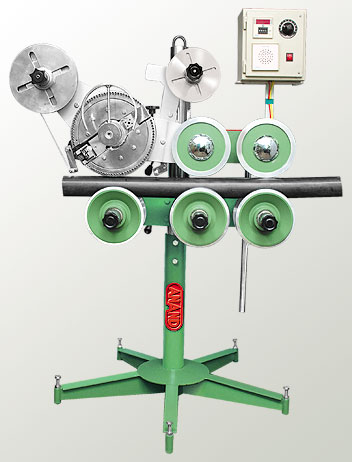

AF-720 HDPE Pipes, PVC Pipes Rotary Automatic (Hot Embossing) Color Marking Machine

AF-720 Rotary Automatic (Hot Embossing) Color Marking Machine is specifically designed print mark in any kind of HDPE Pipes, PVC Pipes, Rigid PVC Pipes, Polyethylene Pipes, Sections in any color during extrusion.

Apart from other marking machine available in market, ANAND HDPE PVC Pipes automatic marking machine uses latest engineering techniques for smooth operation. Hence, ANAND marking machine do not have any induction motor to drive job, it only require power for heating. Although we do manufacture other motor driven models for Off-Line printing.

AF-720 HDPE PVC Pipes marking machine supports from lowest 10mm to 315mm outside diameter of pipes. ANAND PVC Marking Machine uses PANTOGRAPHED BRASS, Stainless Steel Streos (also called STAMPS) which are fixed on heater body. Marking is being done at ever single meter interval on PVC Pipes, HDPE Pipes, Secions, Rigid PVC Pipes, etc.

During the process, temperature are get adjusted by stereos which are heated by electronic percentage differential circuit.

Color marking are being carried out as adjusted by color marker which is polyester tape located between the stereos and the equipment and an apparatus with pneumatic working. User can set maximum upto 4 digit in periodical marking which gives more flexibility and less user intervension for longer period of time.

Company manufacters other similar pvc marking machine vide:

  • Automatic PVC Color Marking Machine with sequential counter with 3 or 4 digits.
  • Hand Operated PVC Color Marking Machine for Upto 7 digits coders.


  • Characters (Stereos) size maximum 8 mm.
  • Printing speed maximum 45 Meters per min. 90 Meters per min. without polyester tape.
  • Dimensions : 1500mm x 1020mm x 920mm (H x L x W)
  • Total weight approximately 185 Kgs.
