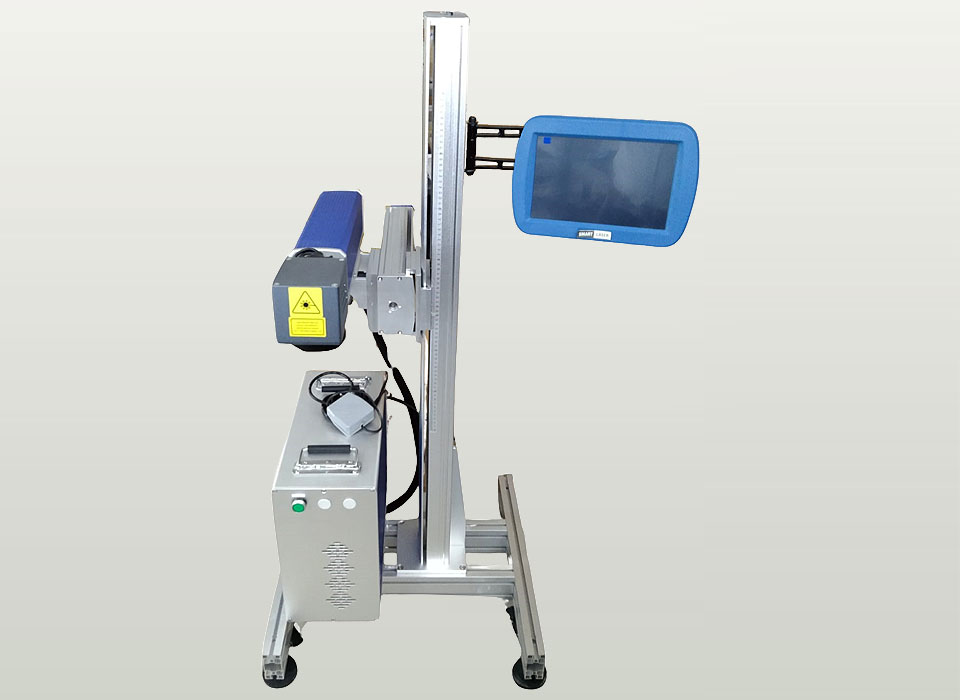

Flying Fiber Laser Marking Machine
Fiber laser marking system is the most adoptable technology due to its versatility, minimal maintenance and zero requirements of consumables. Vansh Enterprise Flying Fiber Laser Marking Machine performs Precise & High Contrast Marking in very short cycles span.
Regardless of job type whether it's Text, Digits, QR Codes or 2D Object any logo, Flying Fiber Laser Marking Machine can easily mark all these elements and more for a wide range of industries very intelligently.
Flying Fiber Laser Marking Machine equipped with precise software application which extends smoother & seamless fully automatic production flow.
Specifications:
- LASER POWER MODEL
AF-20W AF-30W AF-50W AF-60W AF-100W - LASER WAVELENGTH
1060-1070NM - LASER TYPE
FIBER - CHARACTER HEIGHT
0.2MM - COOLING UNIT
AIR COOLED
- CONTROL UNIT
HIGHLY INTEGRATED BOARD(HMI SYSTEM) WITH 8 INCH TOUCH SCREEN DISPLAY (STANDARD) (ENGLISH VERSION) - EMMISION BANDWIDTH
<10NM - MODE OF OPERATION
PULSED
- MARKING SPEED
12,000MM/SEC - MARKING DEPTH
0.04MM (DEPENDING ON MATERIALS) - OUTPUT FIBER DELIVERY LENGTH
3M - OPERATING VOLTAGE
230V AC-50 / 60HZ - SINGLE PHASE
- OPERATING TEMP
0°C - 40°C - WORKING AREA
100 / 150 / 170MM - SCANNER GALVO
SINO / SCANLAB / HIGH QUALITY - PILOT LASER
650NM DIODE LASER, VISIBLE RED LIGHT FOR MARKING GUIDE (PREVIEW)
